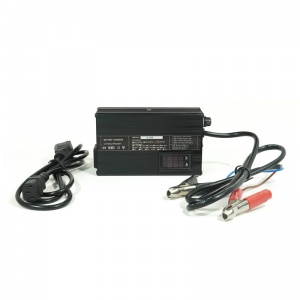

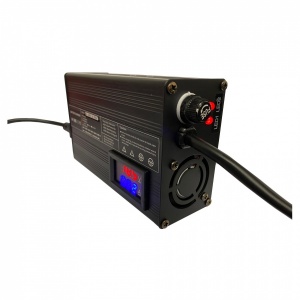

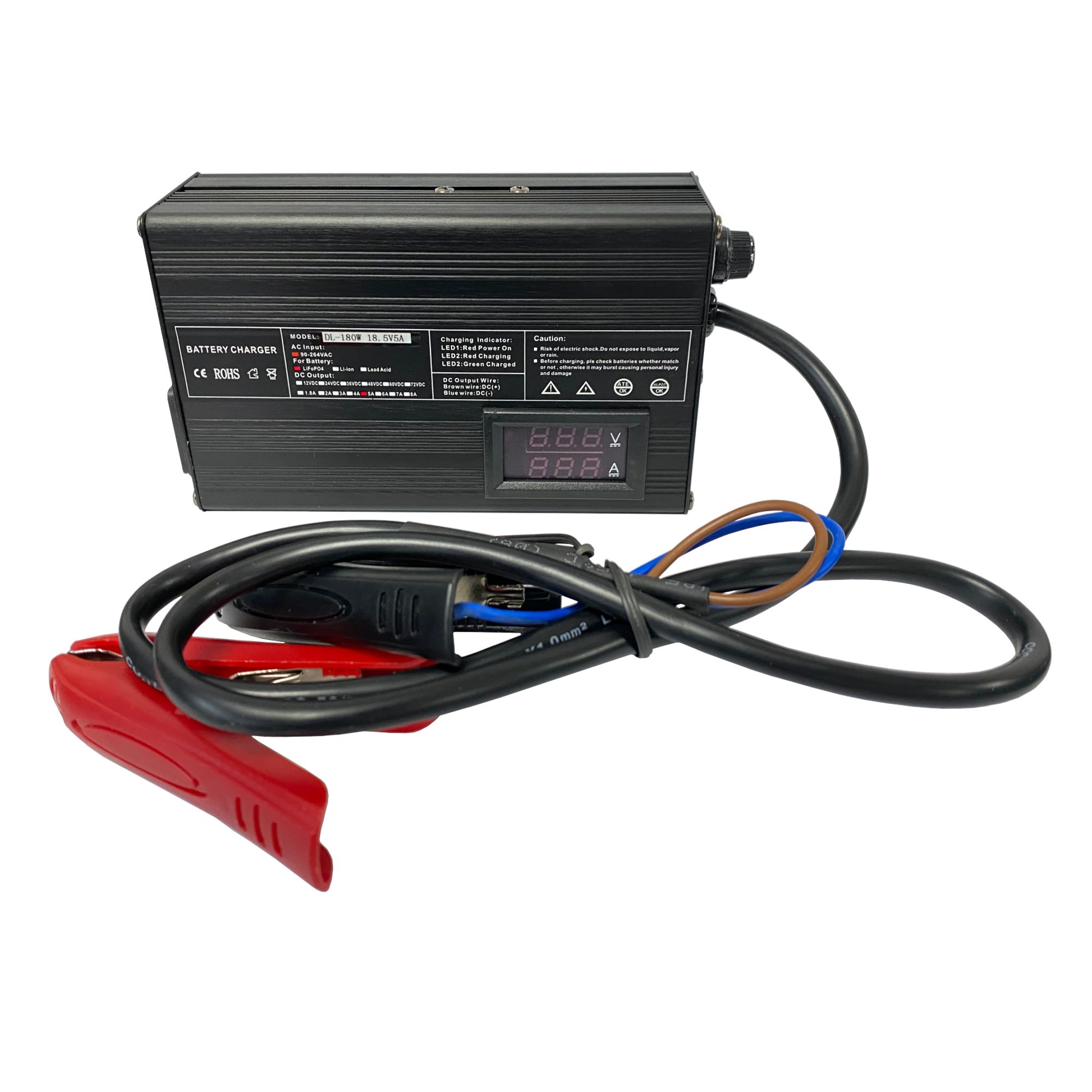

AG-BC-16V Lithium Battery Charger
The Antigravity 16-Volt Charger works with 110 or 220 voltage. Foreign countries just need an adapter for the plug.
This 16-Volt Charger works with any 16V Antigravity Battery, and should ONLY be used with 16V Batteries. With a 5-amp charge rate it offers a fast charge and is a solid, reliable unit for maintaining 16-Volt Lifepo4 batteries.
Features
> Advanced high frequency switching mode power supply technology.
> DC output isolated from AC input.
> Single Input ll0Vac and 230Vac or Universal Input 110/230Vac, 50Hz-60Hz.
> Charging parameters are insensitive to the AC input line voltage variations.
> Completely automatic battery charging: CC, CV.
> Two LEDs: LED1 indicates Power On or Off. LED2 indicates Charging/Charged

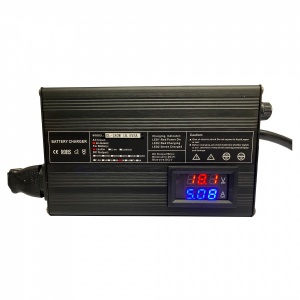

> LED SCREEN indicates charging Voltage and Current.
> Short-circuit, over-voltage, over-temperature, reverse-polarity protections.
> Efficiency > 85%.
> Forced ventilation with fans.
> 100% full load burn-in test.
Operation
-
Connect the Charger to the Wall Outlet/Power Supply.
-
Connect the Charger to the Battery making sure Polarity is correctly connected to the Battery.
Red Clamps to Positive (+) Battery Connection
Black Clamps to Negative (-) Battery Connection
-
LED1: indicates the Charger is plugged in. RED LED confirms the AC power is on.
-
LED2: Green confirms the Charger is connected. FLASHES Red/Green when charging.
-
LED2: will show GREEN SOLID LED when the battery is fully charged.
